Data Logger SlimLogCom

Category: Groundwater, Surface water, Water Quality – Data Logger, Remote transmission

Compact multi-channel data logger with an integrated cellular modem optimized for use in level tubes from Ø 2″
Large 16 MB ring memory for 1.120.000 measurements
Autonomous power supply with standard size C or lithium batteries
Transfer Options: mobile data retrieval, FTP Push, TCP push, SMS push, SMS Alarms
Connectivity with various digital SEBA sensors, e.g. DS(T) 22 pressure sensor, MPS-PTEC / MPS-D8 multi-parameter sensors in combination with various types of antennas

Categories: Waste Water, Water Quality Tags: data logger, Groundwater, Remote transmission, Surface Water, Water Quality

Data Logger SlimLogCom

Benefits

Efficient: Low power consumption through intelligent power management = longer battery life = lower maintenance intervals = lower operating costs.

Low maintenance: Powered by standard 1.5 V Size C batteries, or 3.6V lithium batteries for longer life. The battery replacement is carried out in no time and without the need for special tools.

Slim: Ideal for small diameter pipes and for underground measurement sites. Comparative measurements with an electric contact gauge can be performed without removing the SlimlogCom.

Smart: Upon reaching the predefined event thresholds, e.g. in the case of flooding, the SlimLogCom automatically shortens both the measurement and the transmission intervals, and an alarm SMS will be sent to up to eight recipients.

User-friendly: Two APPs are available for configuration and data read-out of the SlimLogCom. Operating software for beginners SEBAConfig (Windows) has a convenient (Wizard). Using the SEBA SEBAConfigAPP (Android, iOS) together with the SEBA BlueCon Bluetooth module it is convenient to communicate via Bluetooth with a smartphone or tablet and the data logger.

Last but not least: With the password-protected web portal SEBA Hydro center data is not only safe but also accessible at any time on the road or from the office. Alternatively, there is also the possibility of simple data provision on a secure SEBA FTP server.

Application

Construction site supervision, monitoring of thermal plumes, discharge monitoring, monitoring of landfill and contaminated sites, inaccessible measurement sites (e.g. underground measuring sites)
Measuring sites that require rapid data actualization or at sites that are of major public interest
Monitoring of retention basins and watercourses; groundwater monitoring starting from 2″ diameter pipes
Cost optimization by reducing visits to the measurement sites

Accessories

Operating software:

SEBAConfig(Windows)
SEBA Modem Configurator
SEBAConfigApp (Android, iOS)

Operating Unit:

Antennas:

5dB angle-rod antenna
Special rod antenna for underground installations
Puck antenna

Data readout:

Interface cable (USB, RS232)
BlueCon (Bluetooth)
RS232

Retrieval software: DEMASole

Evaluation software: DEMASvis

Archiving Software: DEMASdb

WEB portal: SEBA Hydrocenter

Measuring device protection:

SEBA Bearing Tube Closure with plastic insert and a safety closure
SEBA Bearing Tube Closure with a puck antenna and a safety closure

Specifications

Sensors:

DS (T) -22

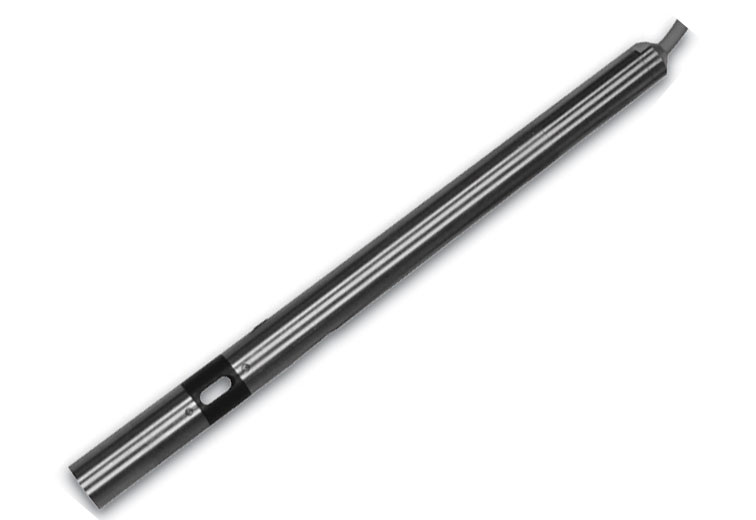

MPS-PTEC
MPS-D3
MPS-D8

Logger Controller:

32Bit Flash controller with integrated WatchDog
RTC-IC Real-Time Clock

Memory capacity: 16 MB (= 1.120.000 readings)

Save interval: 2min – 99 hours

Channels: Max. 32

Measurement routines: Single value, Average value, Event clock, Delta mode

Communications Interface: RS232 (standard), Bluetooth (optional)

Operation:

Interface cable (USB/RS232)
BlueCon (Bluetooth)

Inputs:

Digital: 1 x RS485 (SHWP) for digital SEBA sensors, 1 x pulse
Analog: 2 x 0-1V, 0/4-20mA

Housing Material: Aluminum

Dimensions: Ø35 x 420mm (incl. antenna)

Protection class: IP67 (Standard), IP68 (optional)

Modem 3G:

Supported networks: GSM/GPRS/EDGE/UMTS/HSDPA/HSDPA+

Frequencies: 850/900/1700/1900/2100 MHz (Worldwide)

Current consumption: 25 mA/12 VDC (receiving) 100 mA/12 VDC (sending)

Modem 4G:

Supported networks: GPRS/EDGE/UMTS/HSDPA/HSDPA+/LTE

Frequencies: 800/900/1800/2100/2600 MHz (Worldwide)

Current consumption: 140mA/12V send/receive; 10mA idle

GSM: only SMS-alarm and SMS-push; no GSM-retrieval

SIM card: 1.8V / 3.0V

Antenna:

Dual-band, plugged, SMA connector, robust and weather-resistant
3db angle rod antenna (optional)
Special rod antenna for underground installation (optional)
Puck antenna (optional)

Communication:

Push protocols: either ZRXP/D channel /CSV
Data retrieval protocol: SHWP
SMS data delivery: Binary
SMS alarm: SMS to up to 8 recipients

Power supply:

4 x 1.5V alkaline manganese batteries (standard)
4 x 3.6V Lithium size C batteries (optional, SlimCom3G type, extended battery life)

Operating temperature: -40°C – +70°C

Unit suspension:

Diameter-independent, for SEBA caps, starting from a 2″ diameter pipe diameter (standard)
a “Smart-KIT” suspension unit starting from 4″ tube diameter incl. strain relief for a special measuring cable (Q2/16)

Measuring device protection: Protective cap for RS232 interface (dust and moisture protection)
